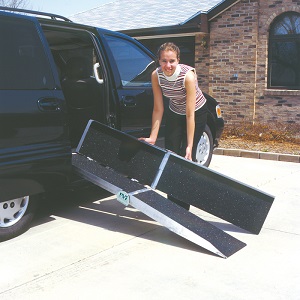

Side Door Van Ramp
Prairie View Industries has a full line of handicap ramps. PVI is also proud to be the inventor of the original multifold access ramp. There are knock-offs of this popular ramp by other companies, but PVI ramps have set the standard of excellence. PVI Products are tested to a 3X safety factor making them pound for pound, the strongest and lightest ramps available. PVI Ramps are proudly made in the USA.
Specifications of the Side Door Van Ramp:
- Limited Lifetime Warranty
- Easy Installation
- Mounts to Floor of Van Inside Doorway
- Folds in Quarters and Stores Vertically, Leaving Doorway Accessible
- Patented Center Joint Hinge Eliminates Pinch Point and Adds Strength
- Durable Welded Construction
- Anti-Slip, High Traction Surface
- Accommodates Wheelchairs and Scooters with Various Wheel Configurations
- This Ramp Has Been Tested at a 3X Safety Factor
Item Number | Length | Width | Size | Folded Weight | Capacity* |
SDR626 |
6' |
26" |
38" x 13 1/2" x 8 3/4" |
32 lbs. |
800 lbs. |
SDR628 |
6' |
28" |
38" x 14 1/2" x 8 3/4" |
33 lbs. |
800 lbs. |
SDR728 |
7' |
28" |
44 1/2" x 14 1/2" x 8 3/4" |
38 lbs. |
800 lbs. |
* Maximum Ramp Capacity: 400 lbs. Single axle - 800 lbs. Two axles.
NOTE: Minimum requirement for floor to ceiling opening: 6' Ramp-42", 7' Ramp-46".
